Harley-Davidson XL 883R Sportster 20032003 Harley-Davidson XL 883R Sportster specifications, pictures, reviews and rating |

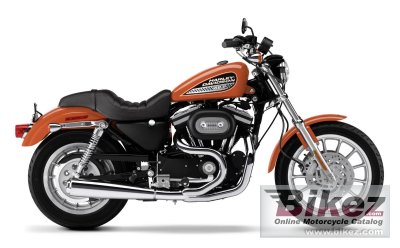

2003 Harley-Davidson XL 883R Sportster. Picture by Harley-Davidson. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson XL 883R Sportster |
| Year | 2003 |
| Category | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 883.0 ccm (53.88 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 4400 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Inductive, battery-powered,V Fire III |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, twin cradle |
| Rake (fork angle) | 29.0° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | Conventional cartridge forks |
| Rear suspension | Dual hydraulic shock absorbers adjustable for preload |
| Front tire | 100/90-19 57H |
| Rear tire | 130/90-HB16 73H |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 245.0 kg (540.1 pounds) |
| Seat height | 758 mm (29.8 inches) If adjustable, lowest setting. |
| Overall length | 2235 mm (88.0 inches) |
| Ground clearance | 154 mm (6.1 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Racing orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
