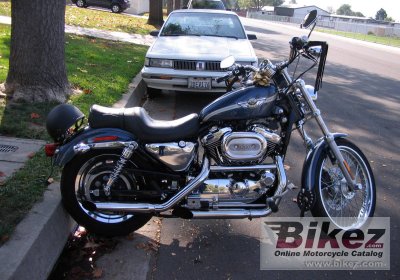

2003 Harley-Davidson XL 1200C Sportster 1200 Custom. Picture submitted by anonymous user..
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson XL 1200C Sportster 1200 Custom |
|
Model year
|
2003 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1199.0 ccm (73.16 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 3900 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
88.8 x 96.8 mm (3.5 x 3.8 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Physical measures and capacities |
|
Dry weight
|
245.0 kg (540.1 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2245 mm (88.4 inches) |
|
Ground clearance
|
159 mm (6.3 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Other specifications |
|
Color options
|
2-tone sterling silver & vivid black, vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
