Harley-Davidson FXWG 1340 Wide Glide 19831983 Harley-Davidson FXWG 1340 Wide Glide specifications, pictures, reviews and rating |

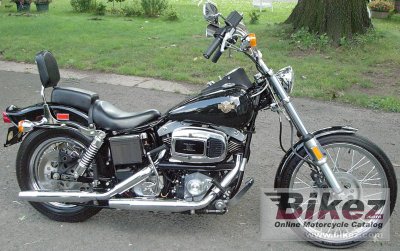

1983 Harley-Davidson FXWG 1340 Wide Glide. Image credits - Mark Meyer.
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson FXWG 1340 Wide Glide |
| Year | 1983 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1337.0 ccm (81.58 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 67.0 HP (48.9 kW)) @ 5800 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 3000 RPM |
| Top speed | 155.0 km/h (96.3 mph) |
| Compression | 7.4:1 |
| Bore x stroke | 88.8 x 108.0 mm (3.5 x 4.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Analogue CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet 9-plate |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks |
| Rear suspension | Swinging fork. |
| Front tire | MJ90-19 |
| Rear tire | MT90-16 |
| Front brakes | Double disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 278.0 kg (612.9 pounds) |
| Weight incl. oil, gas, etc | 292.0 kg (643.7 pounds) |
| Power/weight ratio | 0.2410 HP/kg |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 83 Harley-Davidson FXWG 1340 Wide Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 1983 Harley-Davidson FXWG 1340 Wide Glide or advertise any other MC for sale. You can list all 1983 Harley-Davidson FXWG 1340 Wide Glide available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Harley-Davidson bike | |
Reliability for the 1983 Harley-Davidson FXWG 1340 Wide Glide:  (81.8 out of 100)Click here for complete rating. |
|
