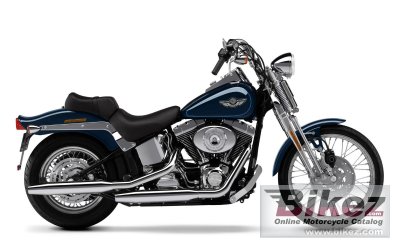

2003 Harley-Davidson FXSTS Springer Softail. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Model
|
Harley-Davidson FXSTS Springer Softail |
|
Year of manufacture
|
2003 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 3200 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Physical measures and capacities |
|
Dry weight
|
305.0 kg (672.4 pounds) |
|
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2374 mm (93.5 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1690 mm (66.5 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
