General information |
|
Model
|

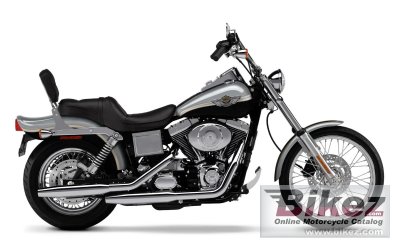

Harley-Davidson FXDWG Dyna Wide Glide |
|
Year model
|
2003 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
67.0 HP (48.9 kW)) |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 2900 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump. Internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on pressurized oil filter |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular frame, rectangular section backbone. Stamped, cast and forged junctions, forged fender supports. |
|
Front suspension
|
49 mm w/polished aluminum fork triple clamp and dual-rate springs, 127mm wheel travel |
|
Rear suspension
|
Coil-over shock , 104mm wheel travel |
|
Front tire
|
MH90-21 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
293.0 kg (646.0 pounds) |
|
Weight incl. oil, gas, etc
|
310.0 kg (683.4 pounds) |
|
Power/weight ratio
|
0.2287 HP/kg |
|
Seat height
|
738 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2381 mm (93.7 inches) |
|
Ground clearance
|
117 mm (4.6 inches) |
|
Wheelbase
|
1665 mm (65.6 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Other specifications |
|
Color options
|
2-tone sterling silver and vivid black, vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl, red flame, blue flame |
|
Starter
|
Electric |
