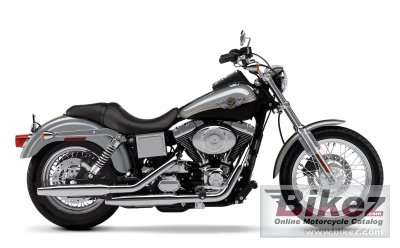

2003 Harley-Davidson FXDL Dyna Low Rider. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FXDL Dyna Low Rider |
|
Model year
|
2003 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 2900 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
100/90-19 57H |
|
Rear tire
|
150/80-B16 71H |
|
Physical measures and capacities |
|
Dry weight
|
300.0 kg (661.4 pounds) |
|
Seat height
|
689 mm (27.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2330 mm (91.7 inches) |
|
Ground clearance
|
85 mm (3.3 inches) |
|
Wheelbase
|
1620 mm (63.8 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
2-tone sterling silver & vivid black, vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
