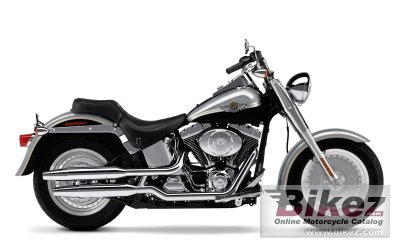

2003 Harley-Davidson FLSTFI Fat Boy. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FLSTFI Fat Boy |
|
Year
|
2003 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3000 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Physical measures and capacities |
|
Dry weight
|
320.0 kg (705.5 pounds) |
|
Seat height
|
699 mm (27.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2396 mm (94.3 inches) |
|
Ground clearance
|
123 mm (4.8 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Other specifications |
|
Color options
|
2-tone sterling silver & vivid black, vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 Harley-Davidson FLSTFI Fat Boy discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
Compare with another motorcycle |
|
|
|
|
|
Rating sample for this Harley-Davidson bike
|
Touring capabilities for the 2003 Harley-Davidson FLSTFI Fat Boy:
 (86.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
