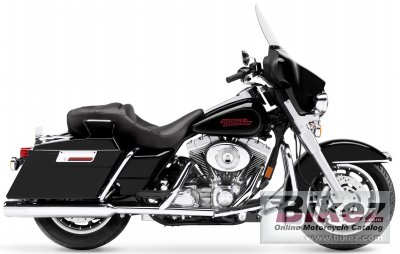

2005 Harley-Davidson FLHTI Electra Glide Standard. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The Electra Glide® Standard is all about going to faraway places, pure and simple. If it’s needed, it’s here. If it isn’t, you won’t have to strip it off. The long haul calls for tried-and-true power. |
|
General information |
|
Model
|
Harley-Davidson FLHTI Electra Glide Standard |
|
Model year
|
2005 |
|
Category
|
Touring |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
109.0 Nm (11.1 kgf-m or 80.4 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Crossover duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
MU85-B16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
332.0 kg (731.9 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2440 mm (96.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1592 mm (62.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry pearl, chopper blue pearl |
