General information |
|
Model
|

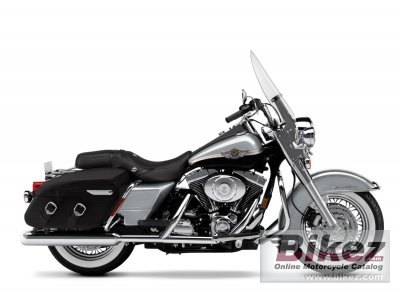

Harley-Davidson FLHRCI Road King Classic |
|
Model year
|
2003 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
67.0 HP (48.9 kW)) @ 5200 RPM |
|
Torque
|
110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3300 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump. Internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, rectangular section backbone. Twin down-tubes swing arm. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
157 mm (6.2 inches) |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Air-adjustable |
|
Front tire
|
130/90-16 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
322.0 kg (709.9 pounds) |
|
Weight incl. oil, gas, etc
|
345.0 kg (760.6 pounds) |
|
Power/weight ratio
|
0.2081 HP/kg |
|
Seat height
|
729 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2440 mm (96.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1592 mm (62.7 inches) |
|
Fuel capacity
|
18.80 litres (4.97 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
2-tone sterling silver/vivid black, vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
|
Starter
|
Electric |
|
Comments
|
Windscreen. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N - KN-171C |
|
Battery
|
GYZ32HL |
|
Spark plugs
|
NGK DCPR7E, DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Belt teeth
|
139 |
|
Belt width
|
1 1/2 in |
|
Pulley teeth
|
32/70 (front/rear) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
