Harley-Davidson FLHR Road King 20032003 Harley-Davidson FLHR Road King specifications, pictures, reviews and rating |

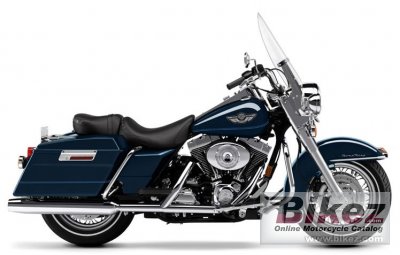

2003 Harley-Davidson FLHR Road King. Picture by Harley-Davidson. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Model name | Harley-Davidson FLHR Road King |
| Year | 2003 |
| Category | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1449.0 ccm (88.42 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3100 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition. |
| Lubrication system | Dry sump. Internally mounted, crank driven gerotor pressure and dual scavenge pump. |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, square-section backbone with twin downtubes. |
| Rake (fork angle) | 26.0° |
| Trail | 157 mm (6.2 inches) |
| Front suspension | 41.3mm Telescopic forks |
| Rear suspension | Dual air adjustable shocks |
| Front tire | MT90-B16 |
| Rear tire | MU85-B16 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Four-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 345.0 kg (760.6 pounds) |
| Seat height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Overall length | 2440 mm (96.1 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1592 mm (62.7 inches) |
| Fuel capacity | 18.80 litres (4.97 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Vivid black, gunmetal pearl, luxury rich red pearl, white pearl, luxury blue pearl |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Oil filter | HiFloFiltro - HF171BRC |
| Battery | GYZ32HL |
| Spark plugs | NGK DCPR7E |
| Idle speed | 1000 RPM |
| Belt teeth | 139 |
| Belt width | 1 1/2 in |
| Pulley teeth | 32/70 (front/rear) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 Harley-Davidson FLHR Road King discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2003 Harley-Davidson FLHR Road King discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Reliability for the 2003 Harley-Davidson FLHR Road King:  (90.3 out of 100)Click here for complete rating. |
|
