Ducati 748 20032003 Ducati 748 specifications, pictures, reviews and rating |

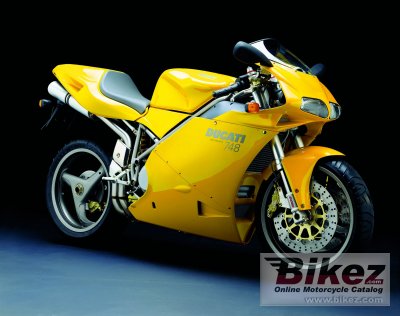

 2003 Ducati 748. Picture credits - The respective copyright holder or manufacturer. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Ducati 748 |
| Year | 2003 |
| Category | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 748.0 ccm (45.64 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 97.0 HP (70.8 kW)) @ 11000 RPM |
| Torque | 73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 9000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 88.0 x 61.5 mm (3.5 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/60-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 196.0 kg (432.1 pounds) |
| Power/weight ratio | 0.4949 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1080 mm (42.5 inches) |
| Overall length | 2030 mm (79.9 inches) |
| Wheelbase | 1410 mm (55.5 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 Ducati 748 discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2003 Ducati 748 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Ducati bike | |
Value for money for the 2003 Ducati 748:  (73.1 out of 100)Click here for complete rating. You can also compare bikes. |
|
