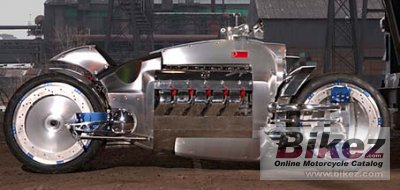

2003 Dodge Tomahawk. Picture credits - The respective copyright holder or manufacturer.
Submit more pictures.
|
|
|
General information |
|
Model name
|
Dodge Tomahawk |
|
Year
|
2003 |
|
Category
|
Prototype / concept model |
|
Rating
|
3.2 See the detailed rating of design and look, fun-factor, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
8277.0 ccm (505.06 cubic inches) |
|
Engine type
|
V10, four-stroke |
|
Power
|
500.0 HP (365.0 kW)) @ 5600 RPM |
|
Torque
|
712.0 Nm (72.6 kgf-m or 525.2 ft.lbs) @ 4200 RPM |
|
Top speed
|
482.8 km/h (300.0 mph) |
|
0-100 km/h (0-62 mph)
|
2.50 seconds |
|
Max RPM
|
6000 |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
102.4 x 100.6 mm (4.0 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Liquid |
|
Gearbox
|
2-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Monocoque, engine is central, stressed member |
|
Front brakes
|
Double disc |
|
Diameter
|
508 mm (20.0 inches) |
|
Rear brakes
|
Double disc |
|
Diameter
|
508 mm (20.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
680.4 kg (1,500.0 pounds) |
|
Front percentage of weight
|
49.0 |
|
Rear percentage of weight
|
51.0 |
|
Seat height
|
737 mm (29.0 inches) If adjustable, lowest setting. |
|
Overall height
|
937 mm (36.9 inches) |
|
Overall length
|
2591 mm (102.0 inches) |
|
Overall width
|
704 mm (27.7 inches) |
|
Ground clearance
|
76 mm (3.0 inches) |
|
Wheelbase
|
1930 mm (76.0 inches) |
|
Fuel capacity
|
12.30 litres (3.25 US gallons) |
|
Other specifications |
