Can-Am's profilation of this bike |
Say hello to the Outlander 500 EFI. Powered by the only V-twin in the category, it delivers more power (40.4-hp) and a better power-to-weight ratio (6.3 hp per 100 lbs) than any bike in its class. |
General information |
---|

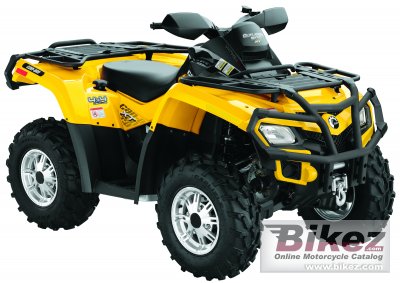

Model | Can-Am Outlander 500 EFI XT |
Year | 2010 |
Category | ATV |
Price as new | US$ 9299. MSRP depends on country, taxes, accessories, etc. |
Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
---|
Displacement | 499.6 ccm (30.49 cubic inches) |
Engine type | V2, four-stroke |
Bore x stroke | 82.0 x 47.0 mm (3.2 x 1.9 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Siemens injectors |
Fuel control | Single Overhead Cams (SOHC) |
Cooling system | Liquid |
Gearbox | Automatic |
Transmission type | Belt (final drive) |
Chassis, suspension, brakes and wheels |
---|
Frame type | SST |
Front suspension | McPherson |
Front wheel travel | 176 mm (6.9 inches) |
Rear suspension | TTI independent |
Rear wheel travel | 229 mm (9.0 inches) |
Front tire | 25/8-12 |
Rear tire | 25/10-12 |
Front brakes | Single disc. Hydraulic |
Rear brakes | Single disc. Hydraulic |
Physical measures and capacities |
---|
Dry weight | 297.0 kg (654.8 pounds) |
Seat height | 877 mm (34.5 inches) If adjustable, lowest setting. |
Overall height | 1168 mm (46.0 inches) |
Overall length | 2184 mm (86.0 inches) |
Overall width | 1143 mm (45.0 inches) |
Ground clearance | 279 mm (11.0 inches) |
Wheelbase | 1285 mm (50.6 inches) |
Fuel capacity | 16.30 litres (4.31 US gallons) |
Other specifications |
---|
Color options | Red, yellow, camo |
Starter | Electric |
Comments | CVT, sub-transmission w/high, low, park, neutral and reverse, standard Engine braking. Selectable 2w/4w shaft driven w/Visco-lokā front differential. BRP XL3000 winch. Aggressive Carlisle ACT radial tires |
Modifications compared to previous model | New dual-mode Dynamic Power Steering (DPS) |
