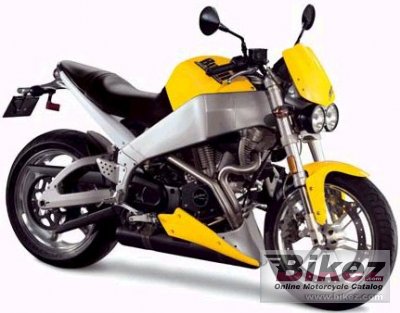

Buell Lightning XB9S 20032003 Buell Lightning XB9S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Buell Lightning XB9S |
| Year model | 2003 |
| Type | Naked bike |
| Rating | 3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 984.0 ccm (60.04 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 92.0 HP (67.2 kW)) @ 7200 RPM |
| Torque | 92.2 Nm (9.4 kgf-m or 68.0 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 79.4 mm (3.5 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminum Frame with Uniplanar powertrain vibration isolation system |
| Front suspension | Showa® inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Showa® shock absorber with adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 175.0 kg (385.8 pounds) |
| Power/weight ratio | 0.5257 HP/kg |
| Seat height | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Overall height | 1232 mm (48.5 inches) |
| Overall length | 1924 mm (75.7 inches) |
| Overall width | 831 mm (32.7 inches) |
| Ground clearance | 127 mm (5.0 inches) |
| Wheelbase | 1321 mm (52.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Midnight Black, Sunfire Yellow |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 03 Buell Lightning XB9S discussion group or the general Buell discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Buell. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2003 Buell Lightning XB9S for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Buell bike | |
Design and look for the 2003 Buell Lightning XB9S:  (91.9 out of 100)Click here for complete rating. |
|
