| General information |
|---|

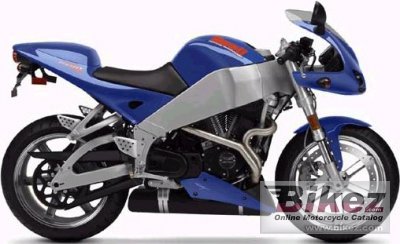

| Model | Buell Firebolt XB9R |
| Year | 2003 |
| Category | Sport |
| Rating | 3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 984.0 ccm (60.04 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 92.0 HP (67.2 kW)) @ 7200 RPM |
| Torque | 92.2 Nm (9.4 kgf-m or 68.0 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 88.9 x 79.4 mm (3.5 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Aluminum Frame with Uniplanar powertrain vibration isolation system |
| Front suspension | Showa® inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Showa® shock absorber with adjustable compression damping, rebound damping and spring preload |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc |
| Diameter | 375 mm (14.8 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 175.0 kg (385.8 pounds) |
| Power/weight ratio | 0.5257 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1092 mm (43.0 inches) |
| Overall length | 1924 mm (75.7 inches) |
| Overall width | 768 mm (30.2 inches) |
| Ground clearance | 127 mm (5.0 inches) |
| Wheelbase | 1321 mm (52.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications |
|---|
| Color options | Battle Blue, Arctic White/Blue, Arctic White/Orange |
