| General information |
|---|

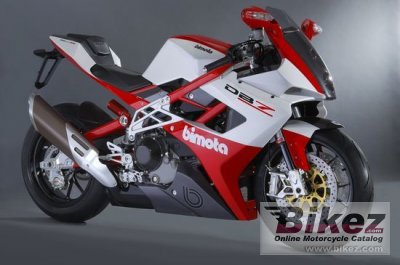

| Model: | Bimota DB7 |
| Year: | 2010 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1098.0 ccm (67.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 160.0 HP (116.8 kW)) @ 9750 RPM |
| Torque: | 123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
| Max RPM: | 10700 |
| Compression: | 12.5:1 |
| Bore x stroke: | 104.0 x 64.5 mm (4.1 x 2.5 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Walbro electronic injection, 60 mm throttle body |
| Fuel control: | Desmodromic valve control |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Dry, multi-disc |
| Exhaust system: | 2 in 1 in 1, Titanium silencer. |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 25.0° |
| Front suspension: | Marzocchi Corse RAC 43mm fork with DLC Fully adjustable for compression, rebound and pre-load |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | Extreme Tech 2T4V shock Fully adjustable for compression, rebound, pre-load plus low and high speed damping adjustment |
| Rear wheel travel: | 120 mm (4.7 inches) |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-ZR17 |
| Front brakes: | Double disc. Floating discs Brembo, Radial caliper Brembo 4-Pistons, 4-Pads |
| Diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bimoto 2-pistons, 2-pads Brembo callipers |
| Diameter: | 230 mm (9.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 170.0 kg (374.8 pounds) |
| Power/weight ratio: | 0.9412 HP/kg |
| Front percentage of weight: | 51.0 |
| Rear percentage of weight: | 49.0 |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1115 mm (43.9 inches) |
| Overall length: | 2100 mm (82.7 inches) |
| Overall width: | 700 mm (27.6 inches) |
| Ground clearance: | 135 mm (5.3 inches) |
| Wheelbase: | 1435 mm (56.5 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Color options: | Red/white, black/white |
| Starter: | Electric |
| Comments: | Ducati 1098 Testastretta Evoluzione engine. |
