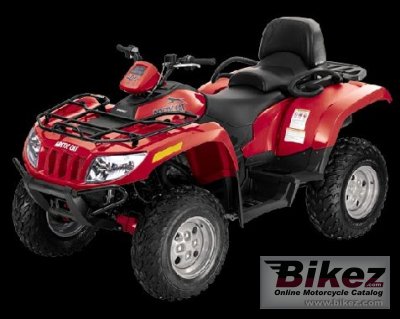

Arctic Cat TRV 400 20092009 Arctic Cat TRV 400 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Arctic Cat TRV 400 |
| Year | 2009 |
| Category | ATV |
| Price as new | US$ 6999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 366.0 ccm (22.33 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 81.0 x 71.2 mm (3.2 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Oil & air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-arm |
| Front wheel travel | 254 mm (10.0 inches) |
| Rear suspension | Double A-arm |
| Rear wheel travel | 254 mm (10.0 inches) |
| Front tire | 25/8-10 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 315.7 kg (696.0 pounds) |
| Overall height | 1275 mm (50.2 inches) |
| Overall width | 1207 mm (47.5 inches) |
| Ground clearance | 279 mm (11.0 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 20.81 litres (5.50 US gallons) |
| Other specifications | |
| Comments | 4WD. Automatic CVT with EBS, Hi/Lo range and reverse |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Arctic Cat TRV 400 discussion group or the general Arctic Cat discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Arctic Cat TRV 400 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Arctic Cat bike | |
Offroad capabilities for the 2009 Arctic Cat TRV 400:  (87.5 out of 100)Click here for complete rating. |
|
