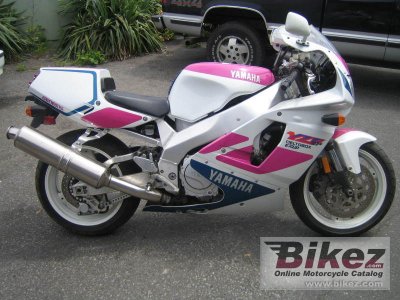

Yamaha YZF 750 SP 19931993 Yamaha YZF 750 SP specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Yamaha YZF 750 SP |
| Model year | 1993 |
| Category | Sport |
| Rating | 3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 749.0 ccm (45.70 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 125.0 HP (91.2 kW)) @ 12000 RPM |
| Torque | 79.8 Nm (8.1 kgf-m or 58.9 ft.lbs) @ 9500 RPM |
| Top speed | 270.0 km/h (167.8 mph) |
| Max RPM | 14000 |
| Compression | 11.5:1 |
| Bore x stroke | 72.0 x 46.0 mm (2.8 x 1.8 inches) |
| Valves per cylinder | 5 |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Fuel consumption | 6.25 litres/100 km (16.0 km/l or 37.64 mpg) |
| Greenhouse gases | 145.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | 4 in 1 with EXUP-valve |
| Chassis, suspension, brakes and wheels | |
| Frame type | Deltabox |
| Front suspension | USD Multi Adjuster |
| Rear suspension | Monoshock Multi Adjuster |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. 6-piston calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston caliper |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 191.0 kg (421.1 pounds) |
| Power/weight ratio | 0.6545 HP/kg |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall height | 1165 mm (45.9 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Overall width | 730 mm (28.7 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1420 mm (55.9 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Starter | Electric |
