General information |
Motorcycle name
|

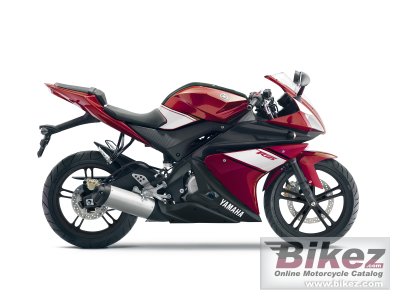

Yamaha YZF-R 125 |
Model year
|
2010 |
Category
|
Sport |
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.7 ccm (7.61 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
14.8 HP (10.8 kW)) |
Torque
|
12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) |
Compression
|
11.2:1 |
Bore x stroke
|
52.0 x 58.6 mm (2.0 x 2.3 inches) |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc coil spring |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel Deltabox |
Trail
|
86 mm (3.4 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swingarm (monocross) |
Rear wheel travel
|
125 mm (4.9 inches) |
Front tire
|
100/80-M17 |
Rear tire
|
130/70-M17 |
Front brakes
|
Single disc |
Diameter
|
292 mm (11.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
230 mm (9.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
138.0 kg (304.2 pounds) |
Seat height
|
818 mm (32.2 inches) If adjustable, lowest setting. |
Overall height
|
970 mm (38.2 inches) |
Overall length
|
2015 mm (79.3 inches) |
Overall width
|
660 mm (26.0 inches) |
Ground clearance
|
155 mm (6.1 inches) |
Wheelbase
|
1355 mm (53.3 inches) |
Fuel capacity
|
13.80 litres (3.65 US gallons) |
Oil capacity
|
1.20 litres (1.27 US quarts) |
Other specifications |
Color options
|
Blue, black, red, white |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
