Yamaha's profilation of this bike |
We started out to give the 2005 R6 more horsepower and a new fork, and wound up engineering a nearly new motorcycle. |
General information |
Model name
|

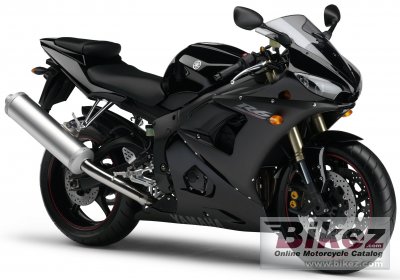

Yamaha YZF-R6 |
Year
|
2005 |
Category
|
Sport |
Price as new | US$ 8399. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
600.0 ccm (36.61 cubic inches) |
Engine type
|
In-line four, four-stroke |
Compression
|
12.4:1 |
Bore x stroke
|
65.5 x 44.5 mm (2.6 x 1.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Fuel Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital DC-CDI |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
24.5° |
Trail
|
94 mm (3.7 inches) |
Front suspension
|
41mm inverted telescopic fork w/adjustable preload, compression and rebound damping |
Front wheel travel
|
119 mm (4.7 inches) |
Rear suspension
|
Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping |
Rear wheel travel
|
119 mm (4.7 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
310 mm (12.2 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
161.9 kg (357.0 pounds) |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Overall height
|
1105 mm (43.5 inches) |
Overall length
|
2045 mm (80.5 inches) |
Overall width
|
688 mm (27.1 inches) |
Wheelbase
|
1384 mm (54.5 inches) |
Fuel capacity
|
4.50 litres (1.19 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White, Rapid Red: Raven |
Starter
|
Electric |
