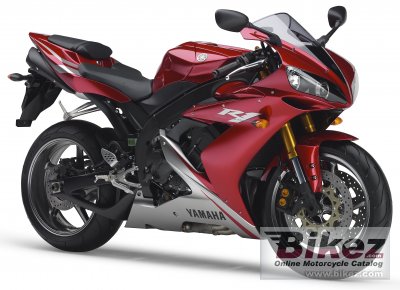

Yamaha YZF-R1 20062006 Yamaha YZF-R1 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The 2006 YZF-R1 features a combination of MotoGP-inspired engine and chassis upgrades that keep it way ahead of the competition, including Deltabox frame, tuned for optimum lateral and torsional rigidity, and a longer swingarm, for extra traction. |
| General information | |
|---|---|
| Model name | Yamaha YZF-R1 |
| Year model | 2006 |
| Type | Sport |
| Rating | 3.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 998.0 ccm (60.90 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 172.6 HP (126.0 kW)) @ 12500 RPM |
| Torque | 106.6 Nm (10.9 kgf-m or 78.6 ft.lbs) @ 10900 RPM |
| Compression | 12.4:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Injection |
| Ignition | TCI (digital) |
| Lubrication system | Wet Sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Driveline | O-ring chain |
| Fuel consumption | 5.88 litres/100 km (17.0 km/l or 40.00 mpg) |
| Greenhouse gases | 136.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Deltabox V, aluminium, twin spar |
| Rake (fork angle) | 24.0° |
| Trail | 91 mm (3.6 inches) |
| Front suspension | Telescopic forks, 43mm |
| Rear suspension | Swingarm (Link suspension) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Four-piston calipers. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 173.0 kg (381.4 pounds) |
| Weight incl. oil, gas, etc | 187.0 kg (412.3 pounds) |
| Power/weight ratio | 0.9976 HP/kg |
| Seat height | 835 mm (32.9 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2085 mm (82.1 inches) |
| Overall width | 720 mm (28.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1415 mm (55.7 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Oil capacity | 1.00 litres (1.06 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | Yamalube 10W-40 |
| Oil filter | K&N KN-204 |
| Brake fluid | DOT 4 |
| Coolant | 3.00 litres (0.79 US gallons) |
| Battery | YTZ10S |
| Spark plugs | NGK, CR9EK |
| Idle speed | 1200 +/- 50 RPM |
| Chain size | 530 |
| Chain links | 116 |
| Sprockets | 17/45 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 42 PSI (2.9 Bar or 290 kPa) |
| Fork tube size | 43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha YZF-R1 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2006 Yamaha YZF-R1 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Racing track capabilities for the 2006 Yamaha YZF-R1:  (88.3 out of 100)Click here for complete rating. |
|
