Yamaha's profilation of this bike |
You´re looking at our manifesto in metal - everything we´ve learned in 50 years of competition. It begins with a third-generation, 998cc, liquid-cooled, short-stroke, 20-valve, in-line four-cylinder engine designed to make 180 horsepower power at a stratospheric 12,500 rpm. The shorter cylinder head is re-angled farther forward to 40 degrees, far enough forward to allow the main frame spars to go over the engine instead of around it. |
General information |
Motorcycle name
|

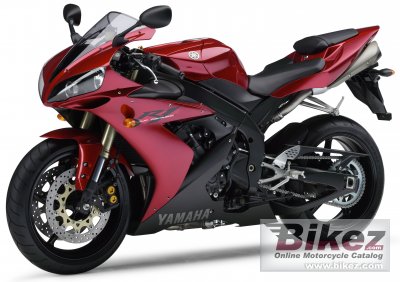

Yamaha YZF-R1 |
Year
|
2005 |
Category
|
Sport |
Price as new | US$ 10699. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
998.0 ccm (60.90 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power
|
180.0 HP (131.4 kW)) @ 12500 RPM |
Compression
|
12.4:1 |
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
Valves per cylinder
|
5 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
24.0° |
Front suspension
|
43mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7´ travel |
Rear suspension
|
Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1´ travel |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Seat height
|
833 mm (32.8 inches) If adjustable, lowest setting. |
Overall length
|
2065 mm (81.3 inches) |
Wheelbase
|
1394 mm (54.9 inches) |
Fuel capacity
|
18.35 litres (4.85 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White; Liquid Silver/Cerulean Silver; Shift Red |
