General information |
Motorcycle name
|

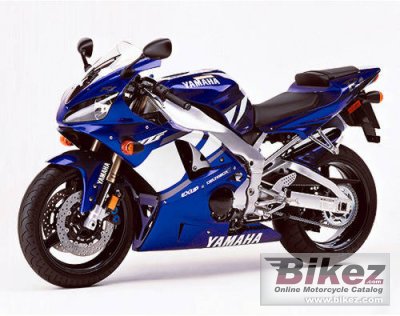

Yamaha YZF-R1 |
Model year
|
2001 |
Category
|
Sport |
Rating
|
3.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
998.0 ccm (60.90 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power output
|
150.0 HP (109.5 kW)) @ 10000 RPM |
Torque
|
108.0 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 8500 RPM |
Top speed
|
270.0 km/h (167.8 mph) |
Compression
|
11.8:1 |
Bore x stroke
|
74.0 x 58.0 mm (2.9 x 2.3 inches) |
Valves per cylinder
|
5 |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Digital TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple discs, cable operated |
Fuel consumption
|
5.81 litres/100 km (17.2 km/l or 40.49 mpg) |
Greenhouse gases
|
134.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium, twin spar |
Rake (fork angle)
|
24.0° |
Trail
|
91 mm (3.6 inches) |
Front suspension
|
41mm inverted telescopic forks |
Front wheel travel
|
135 mm (5.3 inches) |
Rear suspension
|
Truss-type Aluminium swinging arm Monocross system |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
190/50-ZR17 |
Front brakes
|
Double disc. Four-piston calipers. |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc. Two-piston calipers. |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Dry weight
|
175.0 kg (385.8 pounds) |
Weight incl. oil, gas, etc
|
192.0 kg (423.3 pounds) |
Power/weight ratio
|
0.8571 HP/kg |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Overall length
|
2035 mm (80.1 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1395 mm (54.9 inches) |
Fuel capacity
|
18.00 litres (4.76 US gallons) |
Oil capacity
|
2.90 litres (3.06 US quarts) |
Other specifications |
Color options
|
Blue/white, red/white, yellow/white |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Oil filter
|
EMGO 10-82220 |
Brake fluid
|
DOT 4 |
Coolant
|
3.00 litres (0.79 US gallons) |
Battery
|
YT12B-BS |
Spark plugs
|
NGK, CR9E |
Idle speed
|
1100 +/- 50 RPM |
Chain size
|
530 |
Chain links
|
114 |
Sprockets
|
16/43 (front/rear) |
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
Fork tube size
|
41 mm (1.6 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
