General information |
Model name
|

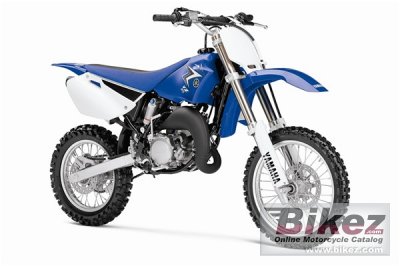

Yamaha YZ 85LW |
Year of manufacture
|
2010 |
Type
|
Enduro / offroad |
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
84.7 ccm (5.17 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Compression
|
8.2:1 |
Bore x stroke
|
47.5 x 47.8 mm (1.9 x 1.9 inches) |
Fuel system
|
Carburettor. Keihin PWK28/1 |
Ignition
|
CDI |
Lubrication system
|
Premix |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc coil spring |
Chassis, suspension, brakes and wheels |
Frame type
|
Semi-double cradle |
Trail
|
106 mm (4.2 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
275 mm (10.8 inches) |
Rear suspension
|
Swingarm (link suspension) |
Rear wheel travel
|
282 mm (11.1 inches) |
Front tire
|
70/0-M17 |
Rear tire
|
90/0-M14 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
71.0 kg (156.5 pounds) |
Seat height
|
864 mm (34.0 inches) If adjustable, lowest setting. |
Overall height
|
1161 mm (45.7 inches) |
Overall length
|
1818 mm (71.6 inches) |
Overall width
|
758 mm (29.8 inches) |
Ground clearance
|
351 mm (13.8 inches) |
Wheelbase
|
1255 mm (49.4 inches) |
Fuel capacity
|
5.00 litres (1.32 US gallons) |
Oil capacity
|
0.60 litres (0.63 US quarts) |
Other specifications |
Color options
|
Racing blue |
Starter
|
Kick |
