Yamaha YZ 85 LW 2006

2006 Yamaha YZ 85 LW specifications, pictures, reviews and rating

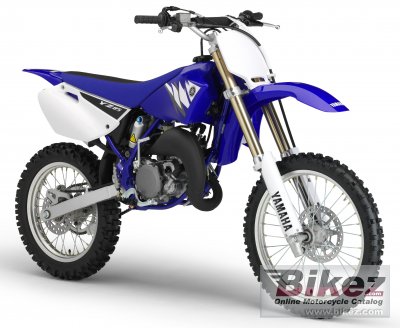

2006 Yamaha YZ 85 LW. Picture credits - Yamaha. Submit more pictures.

2006 Yamaha YZ 85 LW

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

Yamaha's profilation of this bike

Many of today’s MX stars first started out on a Yamaha YZ85, and once you’ve checked out the advanced specification of this mini motocross race bike you’ll see why it’s the choice of champions. Featuring high-performance engine and chassis technology that has been developed from our larger 2-strokes, the YZ85 is the right choice for the next generation of champions.

General information
Model:	Yamaha YZ 85 LW
Year:	2006
Category:	Cross / motocross
Rating:	69.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	84.70 ccm (5.17 cubic inches)
Engine type:	V2, four-stroke
Compression:	8.2:1
Bore x stroke:	47.5 x 47.8 mm (1.9 x 1.9 inches)
Fuel system:	Carburettor. Mikuni TMX38
Ignition:	CDI
Lubrication system:	Premix
Cooling system:	Liquid
Gearbox:	5-speed
Transmission type, final drive:	Chain
Clutch:	Wet, multiple-disc
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic fork
Front wheel travel:	275 mm (10.8 inches)
Rear suspension:	Swinging arm (monocross)
Rear wheel travel:	125 mm (4.9 inches)
Front tyre:	70/90-M17
Rear tyre:	90/90-M14
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Rear brakes diameter:	146 mm (5.7 inches)
Physical measures and capacities
Dry weight:	66.0 kg (145.5 pounds)
Seat height:	864 mm (34.0 inches) If adjustable, lowest setting.
Overall height:	1,161 mm (45.7 inches)
Overall length:	1,818 mm (71.6 inches)
Overall width:	758 mm (29.8 inches)
Ground clearance:	351 mm (13.8 inches)
Wheelbase:	1,255 mm (49.4 inches)
Fuel capacity:	8.00 litres (2.11 gallons)
Other specifications
Starter:	Kick
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to most countries.
Ask questions	Join the 06 Yamaha YZ 85 LW discussion group or the general Yamaha discussion group.
Related bikes	List related bikes for comparison of specs.

General information

Model:

Yamaha YZ 85 LW

Year:

2006

Category:

Cross / motocross

Rating:

69.9 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

84.70 ccm (5.17 cubic inches)

Engine type:

V2, four-stroke

Compression:

8.2:1

Bore x stroke:

47.5 x 47.8 mm (1.9 x 1.9 inches)

Fuel system:

Carburettor. Mikuni TMX38

Ignition:

CDI

Lubrication system:

Premix

Cooling system:

Liquid

Gearbox:

5-speed

Transmission type,
final drive:

Chain

Clutch:

Wet, multiple-disc

Chassis, suspension, brakes and wheels

Front suspension:

Telescopic fork

Front wheel travel:

275 mm (10.8 inches)

Rear suspension:

Swinging arm (monocross)

Rear wheel travel:

125 mm (4.9 inches)

Front tyre:

70/90-M17

Rear tyre:

90/90-M14

Front brakes:

Single disc

Front brakes diameter:

220 mm (8.7 inches)

Rear brakes:

Single disc

Rear brakes diameter:

146 mm (5.7 inches)

Physical measures and capacities

Dry weight:

66.0 kg (145.5 pounds)

Seat height:

864 mm (34.0 inches) If adjustable, lowest setting.

Overall height:

1,161 mm (45.7 inches)

Overall length:

1,818 mm (71.6 inches)

Overall width:

758 mm (29.8 inches)

Ground clearance:

351 mm (13.8 inches)

Wheelbase:

1,255 mm (49.4 inches)

Fuel capacity:

8.00 litres (2.11 gallons)

Other specifications

Starter:

Kick
