Yamaha YZ 85 LW 2004

2004 Yamaha YZ 85 LW specifications, pictures, reviews and rating

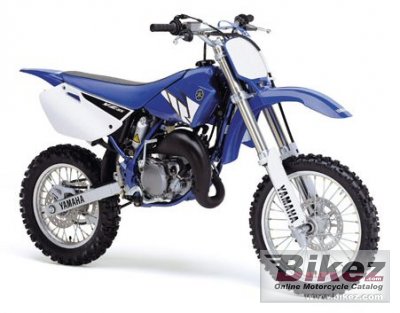

2004 Yamaha YZ 85 LW. Picture credits - Yamaha. Submit more pictures.

General information
Model:	Yamaha YZ 85 LW
Year:	2004
Category:	Cross / motocross
Rating:	3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:	84.7 ccm (5.17 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	8.2:1
Bore x stroke:	47.5 x 47.8 mm (1.9 x 1.9 inches)
Valves per cylinder:	5
Fuel control:	Double Overhead Cams/Twin Cam (DOHC)
Cooling system:	Liquid
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic fork
Front wheel travel:	275 mm (10.8 inches)
Rear suspension:	Swinging arm (monocross)
Rear wheel travel:	287 mm (11.3 inches)
Front tire:	70/100-19
Rear tire:	90/100-16
Front brakes:	Single disc
Diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Diameter:	146 mm (5.7 inches)
Physical measures and capacities
Dry weight:	69.0 kg (152.1 pounds)
Seat height:	904 mm (35.6 inches) If adjustable, lowest setting.
Overall height:	1205 mm (47.4 inches)
Overall length:	1903 mm (74.9 inches)
Overall width:	758 mm (29.8 inches)
Ground clearance:	393 mm (15.5 inches)
Wheelbase:	1255 mm (49.4 inches)
Other specifications
Color options:	Blue
Update specs	Report missing specs or required updates.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Finance options	Compare US motorcycle loan quotes from the nation's top providers.
Parts finder	Chaparral provides OEM parts for the US. CMSNL provides online schematics & OEM parts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to the US.
Maintenance	Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com.
Ask questions	Join the 04 Yamaha YZ 85 LW discussion group or the general Yamaha discussion group.
Related bikes	List related bikes for comparison of specs.
