General information |
|
Model
|

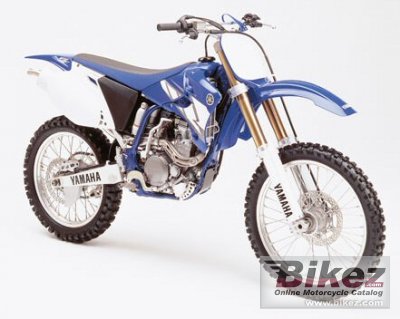

Yamaha YZ 250 F |
|
Model year
|
2004 |
|
Category
|
Cross / motocross |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Valves per cylinder
|
5 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Front suspension system |
|
Front suspension
|
Telescopic Fork |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Swing arm (linked type monocross) |
|
Rear wheel travel
|
315 mm (12.4 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
97.0 kg (213.8 pounds) |
|
Seat height
|
995 mm (39.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1303 mm (51.3 inches) |
|
Overall length
|
2165 mm (85.2 inches) |
|
Overall width
|
827 mm (32.6 inches) |
|
Ground clearance
|
382 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Other specifications |
|
Color options
|
Blue |
