Yamaha's profilation of this bike |
Thirty Years Of Air Superiority. The 125 class is a red-hot crucible of research and development, and one look at the record book is a pretty accurate thermometer of whose fire is stoked: Chalk up another three magazine shootout wins for the YZ125: Transworld Motocross, Dirt Bike and Cycle World. |
General information |
Motorcycle name
|

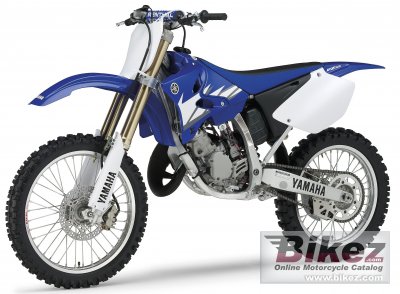

Yamaha YZ 125 |
Model year
|
2005 |
Category
|
Cross / motocross |
Price as new | US$ 5099. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.0 ccm (7.57 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Compression
|
8.7:1 |
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
Valves per cylinder
|
1 |
Fuel system
|
Carburettor |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
27.1° |
Front suspension
|
48mm Kayaba inverted cartridge fork w/adjustable compression and rebound damping |
Front wheel travel
|
300 mm (11.8 inches) |
Rear suspension
|
Kayaba single shock w/adjustable preload, compression and rebound damping and separate hi/lo-speed compression adjusters |
Rear wheel travel
|
315 mm (12.4 inches) |
Front tire
|
80/80-21 |
Rear tire
|
100/90-19 |
Front brakes
|
Single disc |
Diameter
|
250 mm (9.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Seat height
|
993 mm (39.1 inches) If adjustable, lowest setting. |
Overall height
|
1318 mm (51.9 inches) |
Overall length
|
2134 mm (84.0 inches) |
Overall width
|
828 mm (32.6 inches) |
Wheelbase
|
1486 mm (58.5 inches) |
Fuel capacity
|
7.94 litres (2.10 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
