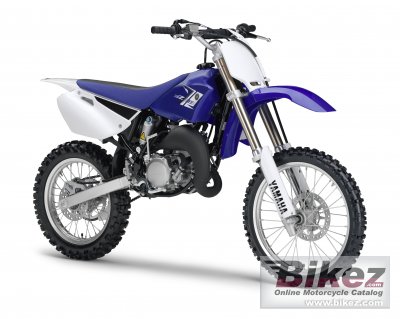

Yamaha YZ85LW 20132013 Yamaha YZ85LW specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Like our large-capacity race bikes, the YZ85/LW models are equipped with upside-down forks and a swingarm (link suspension) system for outstanding handling and steering qualities. And with large-diameter front and rear discs, lightweight aluminium rims and hubs and slimline bodywork, Yamaha´s YZ85/LW models are built for winners. |
| General information | |
|---|---|
| Model | Yamaha YZ85LW |
| Year model | 2013 |
| Type | Cross / motocross |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 85.0 ccm (5.19 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Reed valve |
| Compression | 8.2:1 |
| Bore x stroke | 47.5 x 47.8 mm (1.9 x 1.9 inches) |
| Fuel system | Carburettor. Keihin PWK 28 |
| Ignition | CDI |
| Lubrication system | Premix |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Driveline | Constant Mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium. Semi double cradle. |
| Rake (fork angle) | 27.0° |
| Trail | 106 mm (4.2 inches) |
| Front suspension | Upside-down telescopic fork |
| Front wheel travel | 274 mm (10.8 inches) |
| Rear suspension | Swingarm, (link suspension) |
| Rear wheel travel | 287 mm (11.3 inches) |
| Front tire | 70/100-19 |
| Rear tire | 90/100-16 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 73.0 kg (160.9 pounds) |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1161 mm (45.7 inches) |
| Overall length | 1903 mm (74.9 inches) |
| Overall width | 757 mm (29.8 inches) |
| Ground clearance | 393 mm (15.5 inches) |
| Wheelbase | 1286 mm (50.6 inches) |
| Fuel capacity | 5.00 litres (1.32 US gallons) |
| Oil capacity | 0.50 litres (0.53 US quarts) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Factory warranty | 30 Day (Limited Factory Warranty) |
| Comments | LW is an abbreviation for Large Wheels. |
