| General information |
|---|

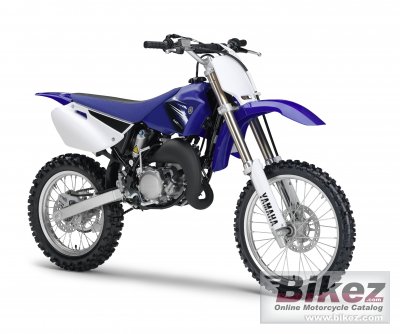

| Model: | Yamaha YZ85LW |
| Year: | 2012 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 85.0 ccm (5.19 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Reed valve |
| Compression: | 8.2:1 |
| Bore x stroke: | 47.5 x 47.8 mm (1.9 x 1.9 inches) |
| Fuel system: | Carburettor. Keihin PWK 28 |
| Ignition: | CDI |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Driveline: | Constant Mesh, 6-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium. Semi double cradle. |
| Rake (fork angle): | 27.0° |
| Trail: | 106 mm (4.2 inches) |
| Front suspension: | Upside-down telescopic fork |
| Front wheel travel: | 274 mm (10.8 inches) |
| Rear suspension: | Single shock |
| Rear wheel travel: | 287 mm (11.3 inches) |
| Front tyre: | 70/100-19 |
| Rear tyre: | 90/100-16 |
| Front brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Single disc |
| Diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 73.0 kg (160.9 pounds) |
| Seat height: | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height: | 1161 mm (45.7 inches) |
| Overall length: | 1903 mm (74.9 inches) |
| Overall width: | 757 mm (29.8 inches) |
| Ground clearance: | 393 mm (15.5 inches) |
| Wheelbase: | 1286 mm (50.6 inches) |
| Fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Color options: | Team Yamaha Blue/White |
| Factory warranty: | 30 Day (Limited Factory Warranty) |
