General information |
|
Motorcycle name
|

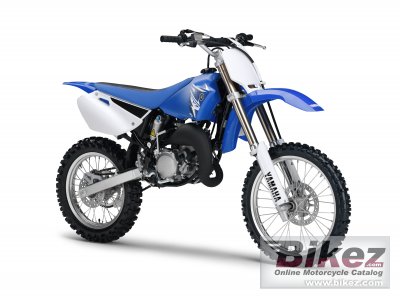

Yamaha YZ85LW |
|
Year of manufacture
|
2009 |
|
Type
|
Enduro / offroad |
|
Rating
|
2.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
84.7 ccm (5.17 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
8.2:1 |
|
Bore x stroke
|
47.5 x 47.8 mm (1.9 x 1.9 inches) |
|
Fuel system
|
Carburettor. Keihin PWK28/1 |
|
Ignition
|
CDI |
|
Lubrication system
|
Premix |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Semi-double cradle |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
275 mm (10.8 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
282 mm (11.1 inches) |
|
Front tire
|
70/100-17 |
|
Rear tire
|
90/100-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
71.0 kg (156.5 pounds) |
|
Seat height
|
864 mm (34.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1161 mm (45.7 inches) |
|
Overall length
|
1818 mm (71.6 inches) |
|
Overall width
|
758 mm (29.8 inches) |
|
Ground clearance
|
351 mm (13.8 inches) |
|
Wheelbase
|
1255 mm (49.4 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Oil capacity
|
0.50 litres (0.53 US quarts) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Kick |
|
Comments
|
LW means ´Large Wheels´ |
