Yamaha YZ85 LW 2010

2010 Yamaha YZ85 LW specifications, pictures, reviews and rating

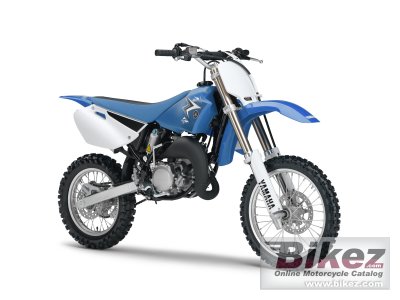

2010 Yamaha YZ85 LW. Picture credits - Yamaha. Submit more pictures.

2010 Yamaha YZ85 LW

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

Yamaha's profilation of this bike

When you´re serious about a future in motocross, the Yamaha YZ85 is the only one way to start out.

General information
Model:	Yamaha YZ85 LW
Year:	2010
Category:	Cross / motocross
Rating:	61 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	84.70 ccm (5.17 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	8.2:1
Bore x stroke:	47.5 x 47.8 mm (1.9 x 1.9 inches)
Fuel system:	Carburettor. Keihin PWK 28
Lubrication system:	Premix
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Frame type:	Semi-double cradle
Front suspension:	Inverted fork
Front wheel travel:	274 mm (10.8 inches)
Rear suspension:	wingarm (link suspension)
Rear wheel travel:	282 mm (11.1 inches)
Front tyre:	70/100-M17
Rear tyre:	90/100-M14
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Rear brakes diameter:	190 mm (7.5 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:	71.0 kg (156.5 pounds)
Seat height:	864 mm (34.0 inches) If adjustable, lowest setting.
Overall height:	1,161 mm (45.7 inches)
Overall length:	1,821 mm (71.7 inches)
Overall width:	785 mm (30.9 inches)
Ground clearance:	351 mm (13.8 inches)
Wheelbase:	1,257 mm (49.5 inches)
Fuel capacity:	4.92 litres (1.30 gallons)
Other specifications
Color options:	Blue
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Motocross parts	Parts and accessories available from Revzilla Motocross. Ships to most countries.
Ask questions	Join the 10 Yamaha YZ85 LW discussion group or the general Yamaha discussion group.
Related bikes	List related bikes for comparison of specs.
