General information |
|
Model name
|

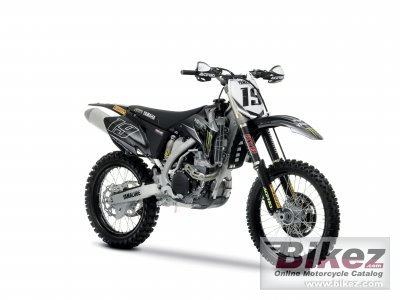

Yamaha YZ450F Team Replica |
|
Year
|
2009 |
|
Category
|
Cross / motocross |
|
Rating
|
3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.0 ccm (27.40 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.3:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin FCR-MX39/1 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Semi-double cradle |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
314 mm (12.4 inches) |
|
Front tire
|
80/0-M21 |
|
Rear tire
|
110/90-M19 |
|
Front brakes
|
Single disc |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
108.3 kg (238.8 pounds) |
|
Seat height
|
1,000 mm (39.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1305 mm (51.4 inches) |
|
Overall length
|
2196 mm (86.5 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Ground clearance
|
374 mm (14.7 inches) |
|
Wheelbase
|
1496 mm (58.9 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Starter
|
Kick |
