Yamaha's profilation of this bike |
Ongoing refinement to chassis produce an amazingly balanced, light-handling machine with performance that’s accessible to all levels of riders.
|
General information |
Model name
|

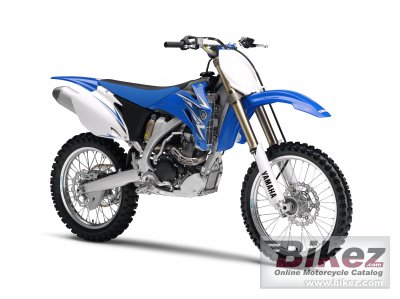

Yamaha YZ250F |
Year
|
2009 |
Category
|
Cross / motocross |
Price as new | US$ 6549. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
250.0 ccm (15.26 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
13.5:1 |
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
Valves per cylinder
|
5 |
Fuel system
|
Carburettor. Keihin FCR MX37 |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Speed-Sensitive System inverted fork |
Front wheel travel
|
300 mm (11.8 inches) |
Rear suspension
|
Fully adjustable single shock |
Rear wheel travel
|
305 mm (12.0 inches) |
Front tire
|
80/80-21 |
Rear tire
|
110/90-19 |
Front brakes
|
Single disc |
Diameter
|
250 mm (9.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
102.5 kg (226.0 pounds) |
Seat height
|
986 mm (38.8 inches) If adjustable, lowest setting. |
Overall height
|
1300 mm (51.2 inches) |
Overall length
|
2162 mm (85.1 inches) |
Overall width
|
826 mm (32.5 inches) |
Ground clearance
|
371 mm (14.6 inches) |
Wheelbase
|
1468 mm (57.8 inches) |
Fuel capacity
|
6.81 litres (1.80 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White, White/Red |
