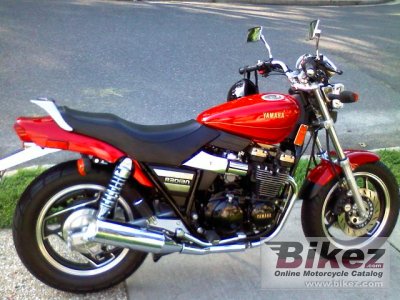

Yamaha YX 600 Radian 19861986 Yamaha YX 600 Radian specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Yamaha YX 600 Radian |
| Model year | 1986 |
| Category | Naked bike |
| Price as new | US$ 2500. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 599.0 ccm (36.55 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 52.4 HP (38.3 kW)) @ 9000 RPM |
| Torque | 35.6 Nm (3.6 kgf-m or 26.3 ft.lbs) @ 7500 RPM |
| Top speed | 125.0 km/h (77.7 mph) |
| 0-100 km/h (0-62 mph) | 3.76 seconds |
| 1/4 mile (0.4 km) | 12.53 seconds |
| 60-140 km/h (37-87 mph), highest gear | 6.48 seconds |
| Max RPM | 12000 |
| Compression | 10.0:1 |
| Bore x stroke | 58.5 x 55.7 mm (2.3 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 4 mikuni BS30´s 30mm Constant Vacuum |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI full transistor ignition |
| Lubrication system | wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | wet plate |
| Fuel consumption | 5.10 litres/100 km (19.6 km/l or 46.12 mpg) |
| Greenhouse gases | 118.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | 4 into 2 system |
| Chassis, suspension, brakes and wheels | |
| Frame type | double downtube full cradle, box section steel wingarm |
| Rake (fork angle) | 27.0° |
| Trail | 128 mm (5.0 inches) |
| Front suspension | 36mm shocks |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | 2 shock absorbers, adjustable for spring preload |
| Rear wheel travel | 98 mm (3.9 inches) |
| Front tire | 110/90-16 |
| Rear tire | 130/90-16 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 197.8 kg (436.0 pounds) |
| Seat height | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Alternate seat height | 765 mm (30.1 inches) If adjustable, highest setting. |
| Overall height | 1095 mm (43.1 inches) |
| Overall length | 2075 mm (81.7 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1385 mm (54.5 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Reserve fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Color options | blue, red, black |
| Starter | Electric |
