General information |
|
Motorcycle name
|

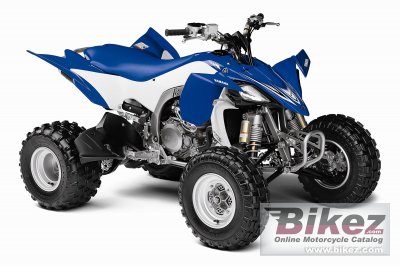

Yamaha YFZ450X |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 8599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
449.0 ccm (27.40 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Valves per cylinder
|
5 |
|
Fuel system
|
Injection. Yamaha Fuel Injection (YFI), 42mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital TCI: Transistor Controlled Ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Drive Train |
|
Driveline
|
2WD; Sealed O-Ring Chain, Eccentric Adjustment |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Hybrid steel and aluminum frame with a Controlled- Fill aluminum subframe and cast aluminum swingarm |
|
Front suspension
|
Independent double wishbone, w/Kashima coated piggyback shocks, High/Low speed compression, rebound and threaded preload adjustment, 9.4-in travel |
|
Rear suspension
|
Cast aluminum swingarm w/piggyback High/Low speed compression, rebound and threaded preload adjustment, 11.0-in travel |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc. Ventilated hydraulic disc, twin piston |
|
Rear brakes
|
Single disc. Wave Style Ventilated Hydraulic Disc, Twin Piston |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
181.4 kg (400.0 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1064 mm (41.9 inches) |
|
Overall length
|
1796 mm (70.7 inches) |
|
Overall width
|
1171 mm (46.1 inches) |
|
Ground clearance
|
114 mm (4.5 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
9.84 litres (2.60 US gallons) |
|
Other specifications |
|
Color options
|
Team Yamaha Blue/White |
|
Starter
|
Electric |
|
Light
|
Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light |
|
Factory warranty
|
6 Month (Limited Factory Warranty) |
