General information |
|
Model
|

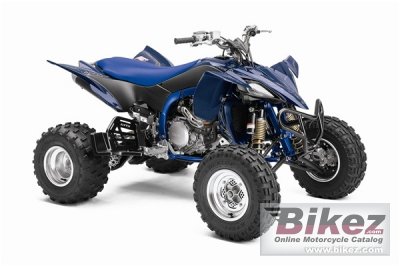

Yamaha YFZ450R SE |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 8999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
449.0 ccm (27.40 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Injection. Yamaha Fuel Injection (YFI) , 42mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital TCI: Transistor Controlled Ignition |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone, w/ Kashima coated piggy back shocks, High/Low speed compression, rebound and threaded preload adjustment, 9.8-in travel |
|
Rear suspension
|
Cast aluminum swingarm w/ piggyback High/Low speed compression, rebound and threaded preload adjustment, 11.0-in travel |
|
Front tire
|
21/7-AT10 |
|
Rear tire
|
20/10-AT9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
183.7 kg (405.0 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1064 mm (41.9 inches) |
|
Overall length
|
1796 mm (70.7 inches) |
|
Overall width
|
1240 mm (48.8 inches) |
|
Ground clearance
|
114 mm (4.5 inches) |
|
Wheelbase
|
1270 mm (50.0 inches) |
|
Fuel capacity
|
9.84 litres (2.60 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
2WD; Sealed O-Ring Chain, Eccentric Adjustment |
