Yamaha YFM90 20122012 Yamaha YFM90 specifications, pictures, reviews and rating |

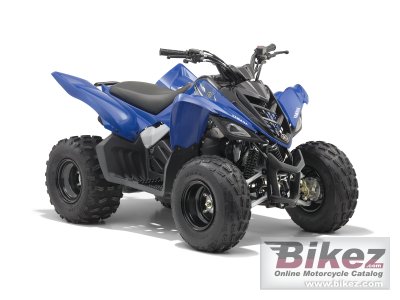

 2012 Yamaha YFM90. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The YFM90 balances power with a range of features to give you total peace of mind. A simple CDI plug-in adjusts engine power output to suit different riding abilities while a parking brake on the handlebar ensures that the YFM90 stays exactly where you last left it. |
| General information | |
|---|---|
| Motorcycle name | Yamaha YFM90 |
| Year of manufacture | 2012 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 88.0 ccm (5.37 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.2:1 |
| Bore x stroke | 47.0 x 51.0 mm (1.9 x 2.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. TK SVR 22 mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Driveline | 2WD. Automatic CVT. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 78 mm (3.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 83 mm (3.3 inches) |
| Front tire | 18/7-8 |
| Rear tire | 18/9-8 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 120.0 kg (264.6 pounds) |
| Seat height | 654 mm (25.7 inches) If adjustable, lowest setting. |
| Overall height | 910 mm (35.8 inches) |
| Overall length | 1490 mm (58.7 inches) |
| Overall width | 885 mm (34.8 inches) |
| Ground clearance | 100 mm (3.9 inches) |
| Wheelbase | 1010 mm (39.8 inches) |
| Fuel capacity | 4.80 litres (1.27 US gallons) |
| Other specifications | |
| Color options | Blue |
| Starter | Electric |
