General information |
|
Model
|

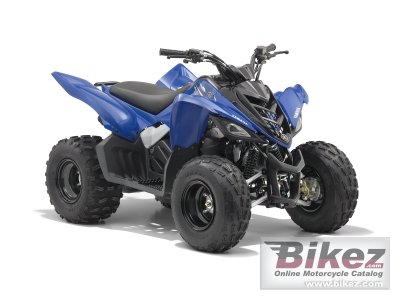

Yamaha YFM90 |
|
Year
|
2011 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
88.0 ccm (5.37 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
47.0 x 51.0 mm (1.9 x 2.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC-CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
2WD |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone, 78 mm stroke |
|
Rear suspension
|
Swingarm, 83 mm stroke |
|
Front tire
|
18/7-8 |
|
Rear tire
|
18/9-8 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
|
Seat height
|
654 mm (25.7 inches) If adjustable, lowest setting. |
|
Overall height
|
910 mm (35.8 inches) |
|
Overall length
|
1490 mm (58.7 inches) |
|
Overall width
|
885 mm (34.8 inches) |
|
Ground clearance
|
100 mm (3.9 inches) |
|
Wheelbase
|
1010 mm (39.8 inches) |
|
Fuel capacity
|
4.80 litres (1.27 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric |
