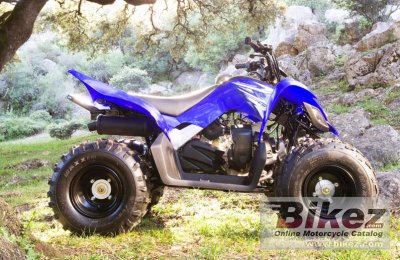

Picture credits - Yamaha. Click to submit more pictures.

2009 Yamaha YFM90

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

Yamaha's profilation of this bike

If your kid is coming up to ‘big school’ age, they’re also at the right age to move up to big-time ATVs like the new YFM90. Small enough for any 12 year old to handle, but big in features and ability.

General information
Model:	Yamaha YFM90
Year:	2009
Category:	ATV
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	88.00 ccm (5.37 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	10.2:1
Bore x stroke:	47.0 x 51.0 mm (1.9 x 2.0 inches)
Fuel system:	Carburettor. SVR22
Ignition:	CDI
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front suspension:	Double A-arm, 78 mm stroke
Rear suspension:	Swingarm, 83 mm stroke
Front tyre:	18/7-10
Rear tyre:	18/10-9
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Single disc
Physical measures and capacities
Dry weight:	120.0 kg (264.6 pounds)
Seat height:	654 mm (25.7 inches) If adjustable, lowest setting.
Overall height:	910 mm (35.8 inches)
Overall length:	1,490 mm (58.7 inches)
Overall width:	885 mm (34.8 inches)
Ground clearance:	114 mm (4.5 inches)
Wheelbase:	1,010 mm (39.8 inches)
Fuel capacity:	4.80 litres (1.27 gallons)
Other specifications
Color options:	Blue
Starter:	Electric
