General information |
|
Model name
|

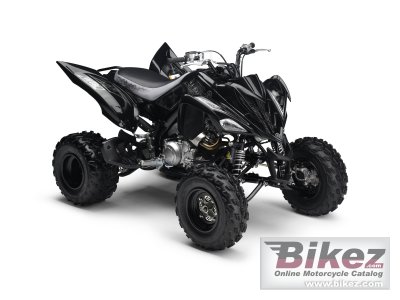

Yamaha YFM700R Special Edition |
|
Year
|
2011 |
|
Category
|
ATV |
|
Rating
|
2.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
686.0 ccm (41.86 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Injection |
|
Ignition
|
ECU |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
2WD. Reverse. Sealed O-ring chain, eccentric adjustment |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
hybrid aluminium/steel frame |
|
Front suspension
|
Independent double wishbone, threaded preload adjustable spring, 3-way adjustable damper, 230 mm stroke |
|
Rear suspension
|
Cast aluminium swingarm, threaded preload adjustable spring, 3-way adjustable damper, 256 mm stroke |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Double disc |
|
Wheels
|
aluminium wheels |
|
Physical measures and capacities |
|
Dry weight
|
178.0 kg (392.4 pounds) |
|
Weight incl. oil, gas, etc
|
192.0 kg (423.3 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall length
|
1845 mm (72.6 inches) |
|
Ground clearance
|
113 mm (4.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Black |
