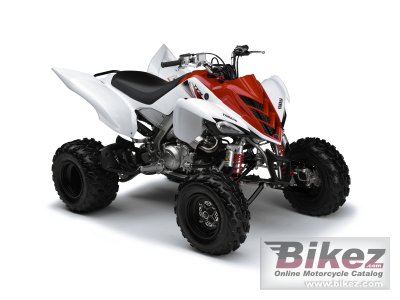

Yamaha YFM700R 20112011 Yamaha YFM700R specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| With high torque and smooth, big-bore 686cc power delivering effortless performance, the YFM700R is the lightest ATV in its class thanks to an aluminium/steel hybrid sports frame. Whether you´re into rocky slopes or muddy bogs, flat-out charging on an open trail, or crawling at walking pace across a knotty forest floor, the YFM700R delivers every time. |
| General information | |
|---|---|
| Model | Yamaha YFM700R |
| Year model | 2011 |
| Type | ATV |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 686.0 ccm (41.86 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Fuel injection, 44 mm |
| Ignition | ECU |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | 2WD. Sealed O-ring chain, eccentric adjustment |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone, threaded preload adjustable spring, 3-way adjustable damper, 230 mm stroke |
| Rear suspension | Cast aluminium swingarm, threaded preload adjustable spring, 3-way adjustable damper, 256 mm stroke |
| Front tire | 21/7-10 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc |
| Rear brakes | Double disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 192.0 kg (423.3 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 1845 mm (72.6 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Color options | Blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Yamaha YFM700R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2011 Yamaha YFM700R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Yamaha bike | |
Design and look for the 2011 Yamaha YFM700R:  (76.7 out of 100)Click here for complete rating. |
|
