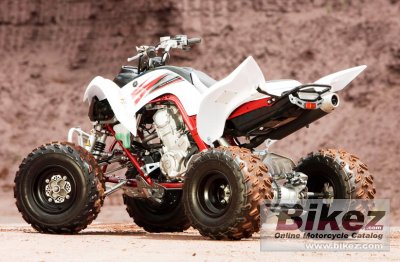

Yamaha YFM700R 20092009 Yamaha YFM700R specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Mighty. That’s the only word to describe the YFM700R. Spark that single giant 686cc piston into life and forget everything you thought you knew about sports ATVs. High torque and smooth, big-bore power deliver effortless performance |
| General information | |
|---|---|
| Model | Yamaha YFM700R |
| Year | 2009 |
| Category | ATV |
| Rating | 3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 686.0 ccm (41.86 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Fuel system | Injection. Electronic Fuel Injection (EFI) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic Control Unit (ECU) |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 21/7-10 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 180.0 kg (396.8 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 1845 mm (72.6 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 114 mm (4.5 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Other specifications | |
| Color options | Blue, white, black |
| Starter | Electric |
