Yamaha YFM50 2009

2009 Yamaha YFM50 specifications, pictures, reviews and rating

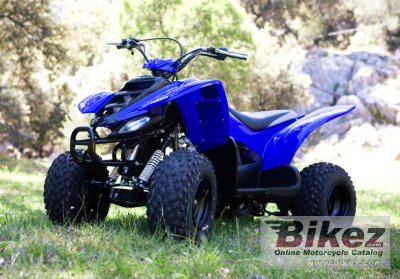

Picture credits - Yamaha. Click to submit more pictures.

2009 Yamaha YFM50

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

Yamaha's profilation of this bike

The ultimate gift for first time riders of 6 years and up, the YFM50 comes with all the features that Junior will recognize from Dad’s ATV: electric start, automatic transmission, long-travel suspension, and high-grip tyres.

General moped information
Model:	Yamaha YFM50
Year:	2009
Category:	ATV
Rating:	56.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.00 ccm (2.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Compression:	10.3:1
Bore x stroke:	39.0 x 41.4 mm (1.5 x 1.6 inches)
Fuel system:	Carburettor. Mikuni VM 16 SH
Fuel control:	Single Overhead Cams (SOHC)
Ignition:	DC-CDI
Lubrication system:	Wet sump
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Front tyre:	16/7-10
Rear tyre:	16/10-9
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Dry weight:	108.0 kg (238.1 pounds)
Seat height:	618 mm (24.3 inches) If adjustable, lowest setting.
Overall height:	915 mm (36.0 inches)
Overall length:	1,537 mm (60.5 inches)
Overall width:	825 mm (32.5 inches)
Wheelbase:	1,030 mm (40.6 inches)
Fuel capacity:	6.80 litres (1.80 gallons)
Other specifications
Starter:	Electric
