General information |
|
Motorcycle name
|

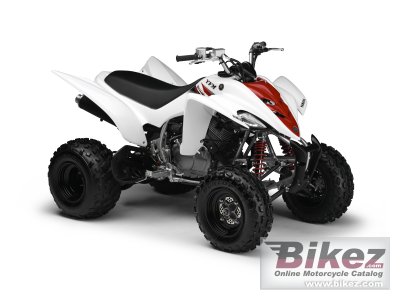

Yamaha YFM350R Raptor |
|
Model year
|
2011 |
|
Category
|
ATV |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
348.0 ccm (21.23 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Fuel system
|
Carburettor. Mikuni BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC - CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Rear suspension
|
Swingarm |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
190.0 kg (418.9 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Overall width
|
1090 mm (42.9 inches) |
|
Ground clearance
|
115 mm (4.5 inches) |
|
Wheelbase
|
1210 mm (47.6 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric |
|
Comments
|
Snorkel-type intake ensures airflow to the engine in mud or water. |
