Yamaha YFM350R 20092009 Yamaha YFM350R specifications, pictures, reviews and rating |

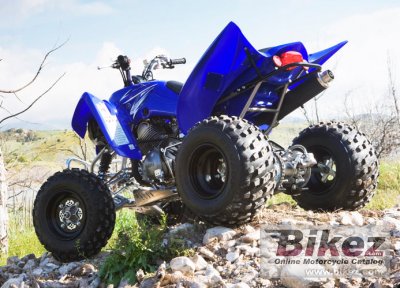

 2009 Yamaha YFM350R. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| With its rugged, sporty looks, high-torque engine and impressive overall chassis specification, the Yamaha YFM350R comes fully-equipped to handle just about every situation. |
| General information | |
|---|---|
| Model name | Yamaha YFM350R |
| Year of manufacture | 2009 |
| Type | ATV |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 349.0 ccm (21.30 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 83.0 x 64.5 mm (3.3 x 2.5 inches) |
| Fuel system | Carburettor. Mikuni BSR 36 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 21/7-10 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 170.0 kg (374.8 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1080 mm (42.5 inches) |
| Overall length | 1780 mm (70.1 inches) |
| Overall width | 1095 mm (43.1 inches) |
| Ground clearance | 114 mm (4.5 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | Blue, white |
| Starter | Electric |
