General information |
|
Model name
|

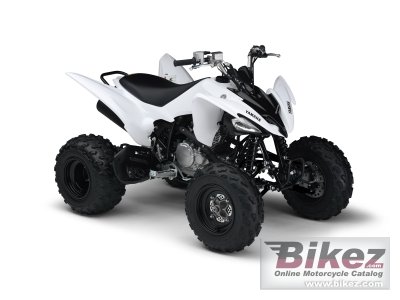

Yamaha YFM250R |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
74.0 x 58.0 mm (2.9 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni BSR 29 mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC-CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
wet multiplate |
|
Driveline
|
2WD. Sealed O-ring chain. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone, 5 position preload adjustable spring, 190 mm stroke |
|
Rear suspension
|
Swingarm, 5 position preload adjustable spring, 200 mm stroke |
|
Front tire
|
20/7-10 |
|
Rear tire
|
19/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
150.0 kg (330.7 pounds) |
|
Seat height
|
730 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1040 mm (40.9 inches) |
|
Overall length
|
1625 mm (64.0 inches) |
|
Overall width
|
1072 mm (42.2 inches) |
|
Ground clearance
|
100 mm (3.9 inches) |
|
Wheelbase
|
1110 mm (43.7 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
White |
|
Starter
|
Electric |
