General information |
|
Model
|

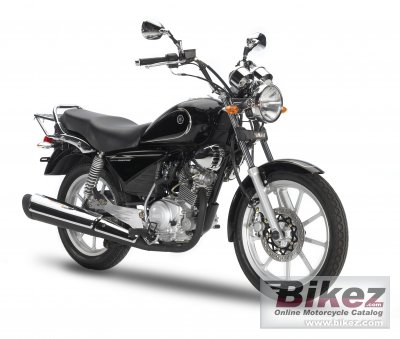

Yamaha YBR125 Custom |
|
Year of manufacture
|
2012 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Forward-inclined single cylinder |
|
Output
|
10.1 HP (7.3 kW)) @ 7800 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Exhaust system
|
Chrome-plated slash-cut muffler |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond Shaped, steel |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Link suspension |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
3.00-18 |
|
Rear tire
|
3.50-16 |
|
Front brakes
|
Double disc. Hydraulic |
|
Diameter
|
245 mm (9.6 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
129.0 kg (284.4 pounds) |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2055 mm (80.9 inches) |
|
Overall width
|
845 mm (33.3 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
Light gray, red, black |
|
Starter
|
Electric & kick |
