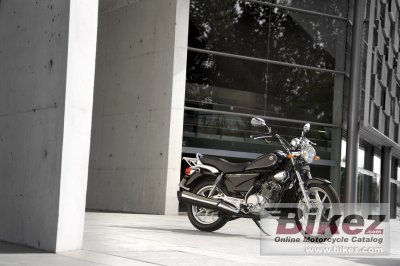

Yamaha YBR125 Custom 20092009 Yamaha YBR125 Custom specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Take some chilled-out custom styling, mix it up with some rugged YBR125 engineering and you’ve got the genuine US cruiser look. The YBR125 Custom goes the whole way with teardrop tank, high ‘bars, deep-valance fenders, slash-cut muffler and a low-slung seat for laid-back riding. |
| General information | |
|---|---|
| Motorcycle name | Yamaha YBR125 Custom |
| Model year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 10.1 HP (7.3 kW)) @ 10000 RPM |
| Torque | 9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond shaped |
| Trail | 102 mm (4.0 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 105 mm (4.1 inches) |
| Front tire | 3.00-18 |
| Rear tire | 3.50-16 |
| Front brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 129.0 kg (284.4 pounds) |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height | 1125 mm (44.3 inches) |
| Overall length | 2055 mm (80.9 inches) |
| Overall width | 845 mm (33.3 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1290 mm (50.8 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Starter | Electric & kick |
