General information |
|
Model
|

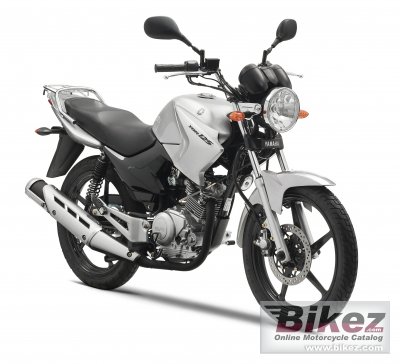

Yamaha YBR125 |
|
Year of manufacture
|
2011 |
|
Type
|
Naked bike |
|
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
10.1 HP (7.3 kW)) @ 10000 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond shaped |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
-.42 |
|
Rear tire
|
90/90-M18 |
|
Front brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
130 mm (5.1 inches) |
|
Seat
|
dual seat with luggage rack |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
125.0 kg (275.6 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1080 mm (42.5 inches) |
|
Overall length
|
1980 mm (78.0 inches) |
|
Overall width
|
745 mm (29.3 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
White, red, black |
|
Starter
|
Electric & kick |
|
Instruments
|
analogue instrument panel with RPM meter |
